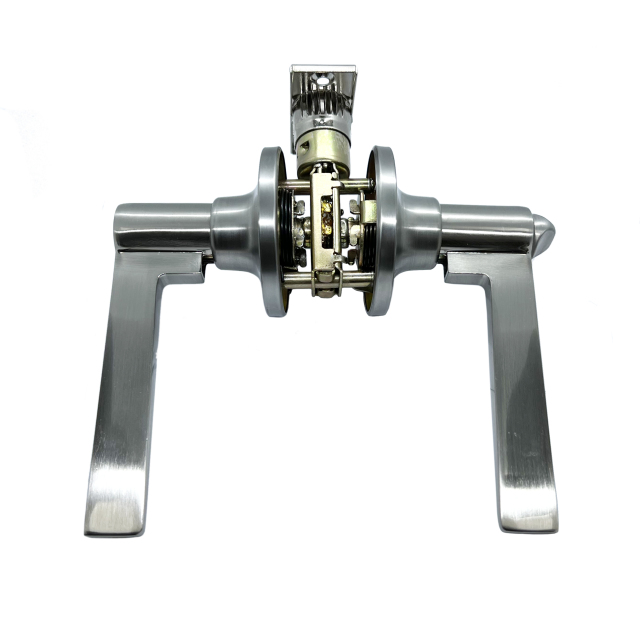

Name: ANSI GRADE 3 American Bedroom Lock Door Handle Lever Set Lock Tubular Leverset Storeroom/ Exit/ Privacy/ Entrance/ Office Lock
Brand: JR Lock Cylinder
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

Company Introduction

Suzhou Jiarong Security Technology Co., Ltd. is a lock cylinder and door lock manufacturer with 20 years of production experience. We are located in Suzhou of Jiangsu province with convenient transportation access. We just moved into our new plant in November 2018, which have about 40,000 square meters. We have obtained ISO 9001 certificate.

The stable quality of our product and on-time delivery are always recognized by our customers. We also have strong R&D ability to work with customers to design or customize new products. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to us about your detailed sourcing requirements. All of us are happy to work with you.

We provide both ANSI cylinder and Europe profile cylinder over the world. Also we have strong production capability in machining and die-casting to provide high precision lock components. Our vision is to be the best manufacturer of cylinder in the world.

JIARONG

We work with you to address your most critical business priorities

20kw

Annual sales of 20 million USD

45000

Over 45,000 square meters of factory area

1000+

Projects had finished

80kw

Annual production of 80 million lock cylinders

US Lever Handle Lock
ANSI GRADE 3

Quick Details

Origin:	China
Name:	US Lever Door Lock
Model:	usll001
Material:	Steel Zinc Alloy
MOQ:	50pcs
Cycle Test:	200000
Pin Mechanism	compatible with 6-pin / 7 pin IC core
For door thickness	35 - 45mm door thick
Weight:	800 g

Door Prep: Cross bore 2-1/8", Edge bore 1"Latch face 1"x2-1/4"
BACKSET: Adjustable 2-3/8"or 2-3/4"
Door Thickness:Adjustable 1-3/8"-2"
Cylinder: 5 PIN or 6 PIN removable core. Schlage "C”keyway or Kwikset, and other options available.
Face plates:1"x2-1/4"square corner. Standard.Round corner and other Options available
Strlkes: 2-1/4"square corner standard. Standard corner and other options Available
Bolt: 1/2" throw.Nickel plated
ANSI/BHMA:A 156.2 Grade3

Customization

Lever style and finishes availbale

Functions Available
FW inicates freewheeling/clutch design available

Bolts
60mm or 70mm backset available

Packing & Shipping

It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
